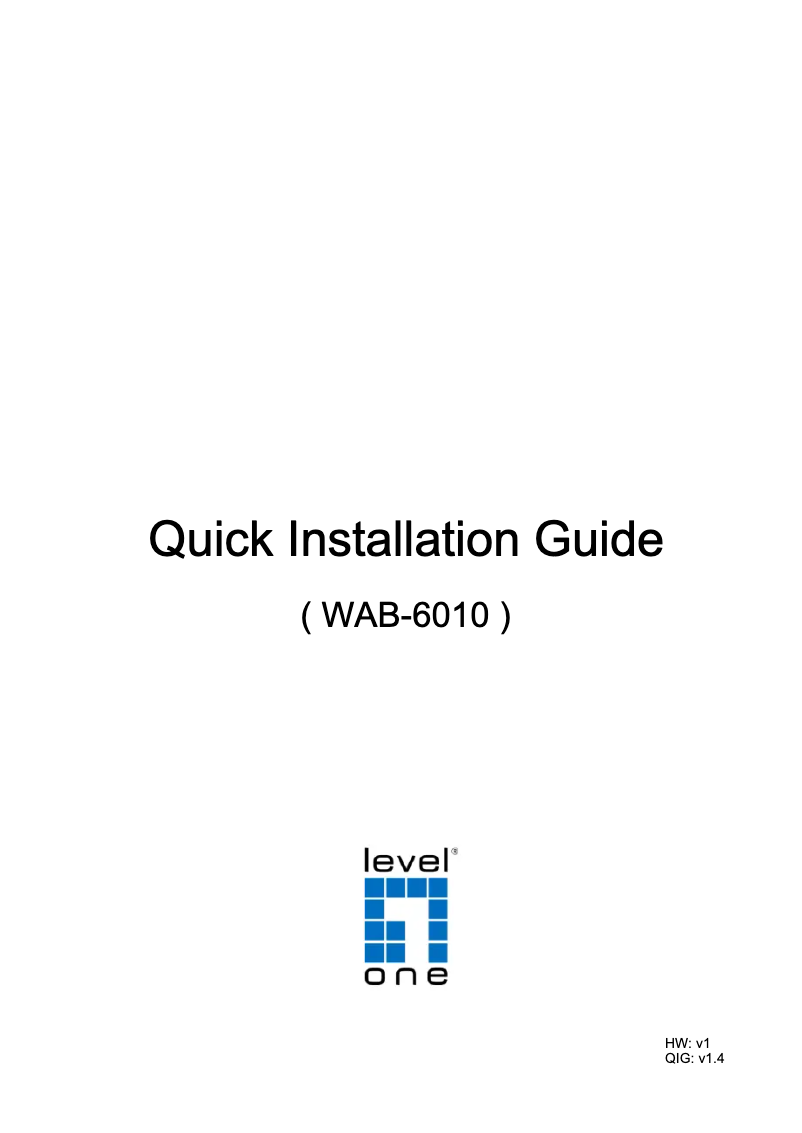

Manuals of product WAB-6010
Technical Specifications WAB-6010
General Information
-
ModelWAB-6010
-
Brand
-
Category
-
Type
-
SKU985582
-
MPN985582
Features
-
Maximum data transfer rate100 Mbit/s
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
-
Quality of Service (QoS)Yes
-
5 GHzNo
-
Network standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
-
Quality of Service (QoS)Yes
-
Operating modesAccess Point (AP), Gateway, Repeater, WISP
-
Frequency band2.4 - 2.4835 GHz
-
Number of channels13 channels
-
Maximum data transfer rate via the wireless local area network300 Mbit/s
-
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, QPSK
-
Quality of Service (QoS)Yes
-
Number of users64 user(s)
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
AC input voltage12 V
-
Input current1 A
Design
-
Reset buttonYes
-
International Protection Code (IP)IP65
-
InternalNo
-
Product colorWhite
-
PositioningPole
Security
-
Security-supported algorithm64-bit WEP
-
Number of SSID support cases128-bit WEP
-
Functions of the Service Set Identifier (SSID)WPA-PSK
-
WPA2-PSK
-
4
-
SSID Broadcast On/Off
Antenna
-
Antenna quantity2
-
Antenna gain level (max)5 dBi
Management features
-
Scalable firmwareYes
-
Scalable firmwareYes
Environmental conditions
-
Operating temperature-40 - 55 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 90 %
Weight and dimensions
-
Width87 mm
-
Depth257 mm
-
Height38 mm
-
Weight400 g
Certificate
-
CertificationCE
Packaging contents
-
Assembly kitYes
-
Cables includedLAN (RJ-45)
Packaging information
-
Quick Installation Guide CDYes
-
Quick Installation Guide CDYes
-
Type of packagingBox
-
Package depth332 mm
-
Package width106 mm
-
Package height95 mm
-
Package weight700 g
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
WAN portEthernet (RJ-45)
-
Quantity of USB 2.0 Ports0
Logistics data
-
Height of the main locker (external)452 mm
-
Width of the main locker (external)350 mm
-
Length of the main locker (external)495 mm
-
Gross weight of the main locker (external)2100 g
-
Product by main locker (external)20 piece(s)
-
Country of originChina
-
Harmonized System Code85176990
Similar products
More product categories from brand LevelOne
More product types from brand LevelOne
Presentation of product WAB-6010 specifications from brand LevelOne
Generalities
The brand of the product LevelOne WAB-6010 is LevelOne. This brand is known for its quality and innovation in the field of household appliances. The product model LevelOne WAB-6010 is WAB-6010 | WAB-6010. This model ensures optimal performance and an enhanced user experience. The EAN code of the product LevelOne WAB-6010 is 4015867202333. This code allows for the unique identification of the product in the distribution system.
Power
Does the LevelOne WAB-6010 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The AC input voltage of the LevelOne WAB-6010 is 12 V. This specification ensures optimal compatibility with standard electrical systems. The input current of the product LevelOne WAB-6010 is 1 A. This input current ensures optimal performance and increased energy efficiency.
Design
Does the product LevelOne WAB-6010 have a Reset Button? Oui. This button allows you to easily reset the product settings. The color of the product LevelOne WAB-6010 is Blanc. This shade gives it a modern and elegant look. Does the product LevelOne WAB-6010 have an Internal? No. This product does not have any internal components. The International Protection Code (IP) for product LevelOne WAB-6010 contains IP65. This code indicates the level of protection against solid objects and moisture. The positioning of the product LevelOne WAB-6010 is Poteau. This positioning allows for optimizing its use and ensuring an optimal user experience.
Security
The Service Set Identifier (SSID) of the LevelOne WAB-6010 product contains Marche/Arrêt de diffusion SSID. This SSID allows for managing the broadcast of the wireless network and enhancing the security of the connection. The number of SSID supports for the product LevelOne WAB-6010 is 4. This feature allows for the management of multiple wireless networks simultaneously, thus providing increased flexibility and security. The supported security algorithm of the product LevelOne WAB-6010 contains 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK. This algorithm ensures optimal protection of your data.
Features
The data transfer rate of the product LevelOne WAB-6010 is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The maximum data transfer rate of the product LevelOne WAB-6010 is 100 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. Does the LevelOne WAB-6010 have 5 GHz? Non. This feature allows for a faster and more stable wireless connection. Is the LevelOne WAB-6010 product 2.4 GHz? Oui. This specification ensures effective and stable wireless connectivity. The network standards of the product LevelOne WAB-6010 are IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. Does the product LevelOne WAB-6010 have Wi-Fi Multimedia (WWM)/(WME)? Oui. This feature allows for smooth and fast streaming of multimedia content via a wireless connection. The operating modes of the product LevelOne WAB-6010 are Access Point (AP), Gateway, Repeater, WISP. These modes allow for flexible use tailored to various connectivity needs. The frequency band of the product LevelOne WAB-6010 is 2.4 - 2.4835 GHz. This feature allows for effective communication within the specified frequency range. The quantity of channels of the product LevelOne WAB-6010 is 13 canaux. This specification determines the number of communication paths available for optimal use. The maximum data transfer rate via the wireless local area network of the product LevelOne WAB-6010 is 300 Mbit/s. This high rate allows for a fast and smooth connection for all your devices. The modulation of the product LevelOne WAB-6010 is 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, QPSK. This feature allows for the operation of the product to be adapted according to the specific needs of the user. Does the product LevelOne WAB-6010 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product LevelOne WAB-6010 is 64 utilisateur(s). This product is ideal for several people.
Antenna
The maximum gain level of the antenna for the product LevelOne WAB-6010 is 5 dBi. This gain level helps optimize the reception and transmission of signals. The number of antennas of the product LevelOne WAB-6010 is 2. This product thus offers improved connectivity and better reception.
Management features
The LevelOne WAB-6010 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the LevelOne WAB-6010 have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance.
Weight and dimensions
The width of the product LevelOne WAB-6010 is 87 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product LevelOne WAB-6010 is 257 mm. This dimension allows for optimal integration into your space. The height of the product LevelOne WAB-6010 is 38 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product LevelOne WAB-6010 is 400 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The operating temperature of the product LevelOne WAB-6010 is -40 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product LevelOne WAB-6010 is 5 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The product LevelOne WAB-6010 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product LevelOne WAB-6010 is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Certificate
The certification of the product LevelOne WAB-6010 contains CE. This certification guarantees compliance with the required safety and performance standards.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product LevelOne WAB-6010 is 1. These ports provide a stable and fast network connection for your devices. The WAN port of the LevelOne WAB-6010 product contains Ethernet (RJ-45). This port allows for a reliable and fast network connection. The number of USB 2.0 ports on the LevelOne WAB-6010 is 0. These ports allow for a fast and efficient connection for your devices.
Packaging contents
The included cable of the product LevelOne WAB-6010 contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the LevelOne WAB-6010 product come with a mounting kit? Oui. This kit will allow you to easily assemble your product.
Packaging information
Does the product LevelOne WAB-6010 have a Quick Installation Guide CD? Oui. This guide makes it easier to install and use the product. Does the product LevelOne WAB-6010 have a CD Manual? Oui. The depth of the product package LevelOne WAB-6010 is 332 mm. This dimension is essential to ensure proper packaging and secure transport. The packaging type of the product LevelOne WAB-6010 is Boîte. This type of packaging ensures optimal protection and facilitates transportation. The width of the package of the product LevelOne WAB-6010 is 106 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product LevelOne WAB-6010 is 95 mm. This dimension is essential to ensure optimal transport and storage. The weight of the LevelOne WAB-6010 package is 700 g. This weight ensures optimal protection during transport and delivery.
Logistics data
The height of the external main locker of the product LevelOne WAB-6010 is 452 mm. This dimension is essential to ensure optimal storage. The gross weight of the main (external) case of the product LevelOne WAB-6010 is 2100 g. This weight is essential for optimizing logistics and transportation. The length of the main (external) locker of the product LevelOne WAB-6010 is 495 mm. This specification is essential to ensure optimal storage and efficient use of space. The width of the external main locker of the product LevelOne WAB-6010 is 350 mm. This dimension is essential to ensure optimal storage and efficient use of space. The product LevelOne WAB-6010 contains 20 pièce(s) piece(s). This specification is essential for inventory management and shipping optimization. The country of origin of the product LevelOne WAB-6010 is Chine. This detail can influence the perception of quality and authenticity. The Harmonized System code for the product LevelOne WAB-6010 is 85176990. This code allows for the unique identification of goods in international trade.
