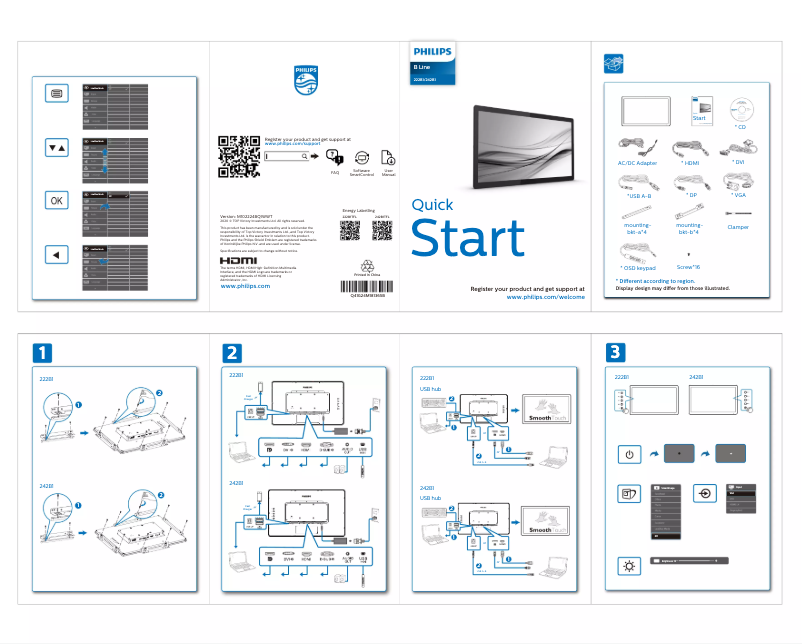

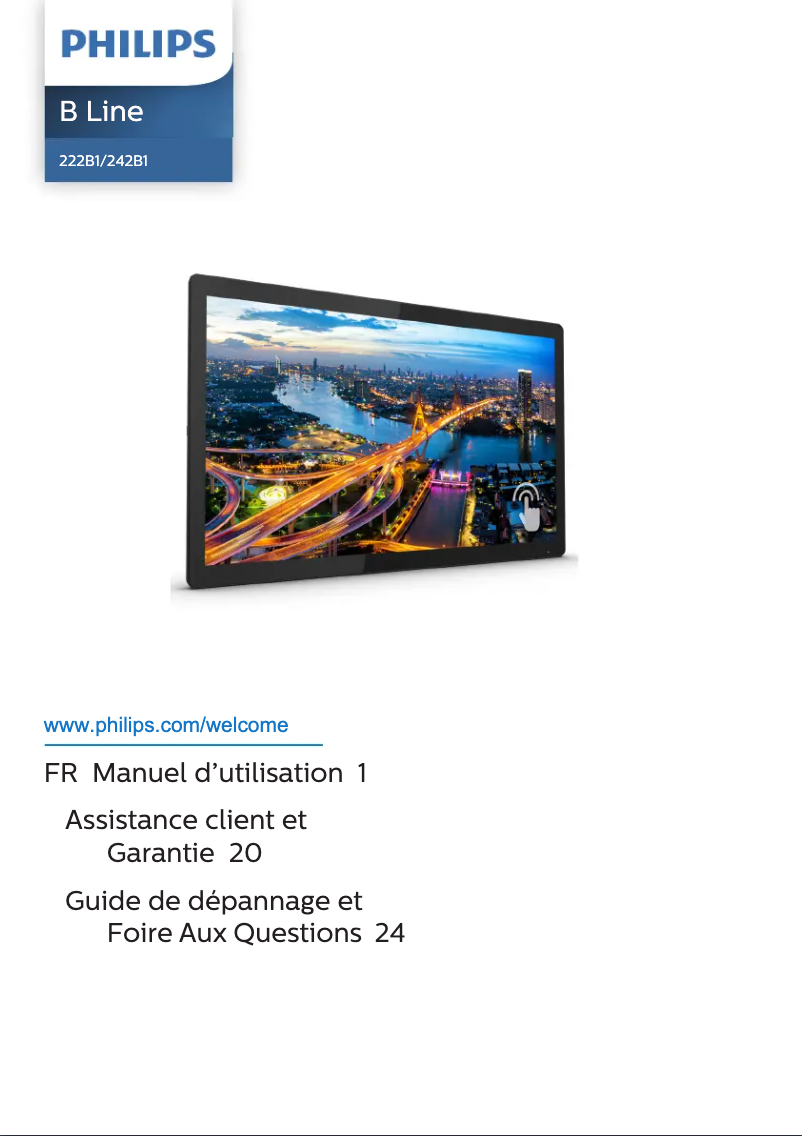

Manuals of product B Line 222B1TFL
Technical Specifications B Line 222B1TFL
General Information
-
ModelB LINE 222B1TFL
-
Brand
-
Category
-
Type
-
SKU1396742
-
MPN1396742
Screen
-
Screen brightness400 cd/m²
-
NTSC cover (normal)72 %
-
Maximum discount rate75 Hz
-
Screen resolution1920 x 1080 pixels
-
Response time4 ms
-
Contrast ratio1000:1
-
No pixel0.24795 x 0.24795 mm
-
Horizontal scanning domain30 - 85 kHz
-
Vertical scanning frequency48 - 75 Hz
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Image format16:9
-
Type of feedbackW-LED
-
Dynamic contrast report50000000:1
-
Screen diagonal (cm)54.6 cm
-
Number of simultaneous touchpoints10
-
Horizontal viewable size476.064 mm
-
Vertical viewable size267.786 mm
-
Touch screenYes
-
Touch screenYes
-
Marketing name of the dynamic contrast ratioSmartContrast
-
Number of colors displayed16.7 million colors
-
Type of panelIPS
-
Pixel density102 pixels per inch
-
Screen shapeFlat
-
Surface hardness7H
-
Touch screenYes
-
Screen size21.5 "
-
Screen brightness400 cd/m²
-
Touch screen technologyProjected capacitive technology
-
Touch technologyMultiple pressures
-
Display technologyLED
-
Image format16:9
-
Type HDFull HD
-
Spread rate5 %
Other features
-
Type of exterior finishTextured
-
Visible region screen HxV476.064 x 267.786 mm
-
CertificationCB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified
-
Mean time between failures70000 h
-
Image enhancementSmartImage
-
Without heavy metalsHg (mercury)
-
Recyclable packaging materials100 %
-
Compliance approvalsCB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified
-
International Protection Code (IP)IP65
-
EasyRead ModeYes
-
Energy efficiency class (old)E
-
Touch modeStylus, Finger, Glove
Design
-
Front chassisBlack
-
Front chassisBlack
Packaging contents
-
Cables includedHDMI
-
Provided softwareDisplayPort
-
User manualUSB Type-A to USB Type-B
-
AC
-
SmartControl
-
Yes
Connectivity
-
Built-in USB hubYes
-
Number of upstream ports1
-
Number of upstream ports1
-
HDMI version1.4
-
DisplayPort version1.2
-
Built-in USB hubYes
-
Built-in USB hubYes
-
HDMI version1.4
-
DisplayPort version1.2
-
Built-in USB hubYes
-
Built-in USB hubYes
-
Number of upstream ports1
-
Number of downstream USB Type A ports2
Power
-
Energy consumption (eco mode)11.2 W
-
Typical electricity consumption20.1 W
-
Electricity consumption (stop)0.3 W
-
Type of power supplyExternal
-
Electricity consumption (stop)0.3 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Energy efficiency class (SDR)E
-
European Product Registry for Energy Labelling (EPREL)424363
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 60 °C
-
Operating relative humidity (H-H)20 - 80 %
-
Operating altitude0 - 3658 m
-
Non-operating altitude0 - 12192 m
Ergonomics
-
Wall mountingYes
-
Wall mountingYes
-
VESA standard100 x 100 mm
-
Number of OSD languages21
-
Multilingual display on screenCHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
-
Wall mountingYes
-
IndicatorsOperation, Stand-by
-
Wall mountingYes
-
Cable lock location typeKensington
-
Palm rejection zone30 x 30 mm
-
Wall mountingYes
Packaging information
-
Package weight7540 g
-
Package width595 mm
-
Package depth121 mm
-
Package height390 mm
Representation / realization
-
Support for the Windows operating systemWindows 10
-
Low-Blue-Light TechnologyWindows 7
-
Video synchronization componentWindows 8
-
Low-Blue-Light TechnologyWindows 8.1
-
AMD FreeSyncYes
-
AMD FreeSyncSeparate sync, Sync-on-green (SOG)
-
Yes
-
No
-
No
Sustainability
-
Sustainability certificatesRoHS
-
Does not containPVC/BFR, Mercury (element)
Weight and dimensions
-
Width (without support)522 mm
-
Depth (without support)49 mm
-
Height (without support)315 mm
-
Weight (without support)4910 g
Multimedia
-
Built-in cameraNo
Similar products
More product categories from brand Philips
Audio Philips
Home appliances Philips
Personal care Philips
Household appliances Philips
Interior Philips
Phones Philips
Other Philips
Garden and outdoor Philips
Software Philips
More product types from brand Philips
Presentation of product B Line 222B1TFL specifications from brand Philips
Generalities
The brand of the product Philips B Line 222B1TFL is Philips. This brand is known for its quality and innovation in the field of household appliances. The product model Philips B Line 222B1TFL is B Line 222B1TFL | 222B1TFL/01. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Philips B Line 222B1TFL is 8712581772949. This code allows for the unique identification of the product in the distribution system.
Design
The color of the product Philips B Line 222B1TFL is Noir. This shade gives it a modern and elegant look. The front chassis of the product Philips B Line 222B1TFL is Noir. This front chassis offers a sleek and sturdy finish, perfect for a modern design.
Packaging contents
The included cable of the product Philips B Line 222B1TFL contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Philips B Line 222B1TFL have a User Manual? Oui. This document provides clear instructions for optimal use of the product. The software provided with the product Philips B Line 222B1TFL contains SmartControl. This software enhances the user experience and optimizes the device's performance.
Other features
The exterior finish of the product Philips B Line 222B1TFL is Texturé. This finish adds an aesthetic touch and a shine that enhances the overall appearance of the product. The visible HxV screen area of the Philips B Line 222B1TFL product contains 476.064 x 267.786 mm. This feature enhances the visual experience by providing a generous display surface. The certification of the product Philips B Line 222B1TFL contains CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified. This certification guarantees compliance with the required safety and performance standards. The average time between failures of the product Philips B Line 222B1TFL is 70000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The product Philips B Line 222B1TFL features an image enhancement. This functionality allows for optimizing visual quality for an immersive and enjoyable experience. Does the product Philips B Line 222B1TFL have No heavy metals? Hg (mercure). This feature ensures that the product does not contain harmful substances for health. The product Philips B Line 222B1TFL contains 100% recyclable packaging materials. These materials help reduce environmental impact and promote more responsible consumption. The International Protection Code (IP) for product Philips B Line 222B1TFL contains IP65. This code indicates the level of protection against solid objects and moisture. Does the product Philips B Line 222B1TFL have EasyRead Mode? Oui. This feature allows for simplified and enjoyable reading, ideal for all users. The energy efficiency class (old) of the product Philips B Line 222B1TFL is E. This feature indicates the level of energy performance of the product. The product Philips B Line 222B1TFL has Compliance Approvals: CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified. These certifications ensure compliance with the required safety and quality standards. The touch mode of the product Philips B Line 222B1TFL includes Stylus, Finger, Glove. This mode allows for smooth and intuitive interaction with the device, providing an enhanced user experience.
Connectivity
The product Philips B Line 222B1TFL has an audio output of Oui. This feature allows for easy connection to audio devices for an optimal sound experience. The product Philips B Line 222B1TFL does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of VGA (D-Sub) ports on the Philips B Line 222B1TFL is 1. This port allows for easy connection with various devices and monitors. The number of HDMI ports on the Philips B Line 222B1TFL is 1.4. This detail is essential for determining compatibility with your multimedia devices. The number of DisplayPort interfaces of the product Philips B Line 222B1TFL is 1.2. This specification allows for optimal connectivity with various devices. Does the product Philips B Line 222B1TFL have a USB touch port? Oui. This feature allows for easy and quick connection with various compatible devices. The product Philips B Line 222B1TFL has an HDMI Version 1.4. This specification ensures optimal connectivity for your multimedia devices. The product Philips B Line 222B1TFL has DisplayPort version 1.2. This specification allows for improved connectivity for high resolutions and refresh rates. Does the Philips B Line 222B1TFL have HDMI? Oui. This connectivity allows for the transmission of both high-quality videos and audios. Does the product Philips B Line 222B1TFL have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. Does the product Philips B Line 222B1TFL have a built-in USB hub? Oui. This feature allows you to connect multiple USB devices simultaneously, thus enhancing your user experience. The number of upstream ports of the product Philips B Line 222B1TFL is 1. This number determines the connection capacity with other devices. The number of downstream USB Type A ports of the product Philips B Line 222B1TFL is 2. These ports allow for easy and fast connection to various devices.
Environmental conditions
The operating temperature of the product Philips B Line 222B1TFL is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Philips B Line 222B1TFL is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Philips B Line 222B1TFL has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating altitude of the product Philips B Line 222B1TFL is 0 - 3658 m. This specification ensures optimal performance across a wide range of altitudes. The altitude of non-operation for the product Philips B Line 222B1TFL is 0 - 12192 m. This specification ensures that the product can operate efficiently across a wide range of altitudes.
Power
The energy consumption in economy mode of the product Philips B Line 222B1TFL is 11.2 W. This feature significantly reduces electrical consumption while maintaining optimal performance. The power supply type of the product Philips B Line 222B1TFL is Externe. This specification ensures reliable and efficient use of the device. The energy consumption in standby mode of the product Philips B Line 222B1TFL is 0.3 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The typical power consumption of the product Philips B Line 222B1TFL is 20.1 W. This feature allows for the assessment of the energy efficiency of the device. The power consumption (standby) of the product Philips B Line 222B1TFL is 0.3 W. This feature helps to minimize energy consumption when the device is in standby mode. The AC input voltage of the Philips B Line 222B1TFL is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The European Product Register for Energy Labelling (EPREL) code for the product Philips B Line 222B1TFL contains 424363. This code is essential to ensure transparency and energy efficiency of devices. The AC input frequency of the product Philips B Line 222B1TFL is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The energy efficiency class (SDR) of the product Philips B Line 222B1TFL is E. This class indicates the level of energy performance of the product, which can impact your energy bills and the environment.
Packaging information
The weight of the Philips B Line 222B1TFL package is 7540 g. This weight ensures optimal protection during transport and delivery. The width of the package of the product Philips B Line 222B1TFL is 595 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Philips B Line 222B1TFL is 390 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Philips B Line 222B1TFL is 121 mm. This dimension is essential to ensure proper packaging and secure transport.
Screen
The typical screen brightness of the product Philips B Line 222B1TFL is 400 cd/m². This feature ensures optimal visibility in various lighting conditions. The screen resolution of the product Philips B Line 222B1TFL is 1920 x 1080 pixels. This feature ensures optimal display quality for a pleasant visual experience. The NTSC (normal) coverage of the product Philips B Line 222B1TFL is 72 %. This coverage ensures accurate color reproduction and an optimal visual experience. The maximum discount rate of the product Philips B Line 222B1TFL is 75 Hz. This rate ensures optimal display fluidity for an enhanced user experience. The response time of the product Philips B Line 222B1TFL is 4 ms. This fast response time ensures a smooth and responsive visual experience. The contrast ratio of the product Philips B Line 222B1TFL is 1000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The vertical scanning frequency of the product Philips B Line 222B1TFL is 48 - 75 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The pixel pitch of the product Philips B Line 222B1TFL is 0.24795 x 0.24795 mm. This pixel pitch ensures optimal display quality without distortion. The horizontal scanning range of the product Philips B Line 222B1TFL is 30 - 85 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical viewing angle of the Philips B Line 222B1TFL is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The image format of the product Philips B Line 222B1TFL is 16:9. This format is ideal for an immersive visual experience. The type of feedback for the product Philips B Line 222B1TFL is W-LED. This type of feedback offers optimal display quality and vibrant colors. The horizontal viewing angle of the product Philips B Line 222B1TFL is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The dynamic contrast ratio of the product Philips B Line 222B1TFL is 50000000:1. This ratio helps enhance image quality by providing deeper blacks and brighter whites. The screen diagonal of the product Philips B Line 222B1TFL is 54.6 cm. This feature allows for an immersive and high-quality visual experience. The number of simultaneous touch points of the product Philips B Line 222B1TFL is 10. This high number allows for smooth and responsive interaction, ideal for multitasking applications. The horizontal viewable size of the product Philips B Line 222B1TFL is 476.064 mm. This specification ensures an optimal visual experience for all your content. The vertical viewable size of the product Philips B Line 222B1TFL is 267.786 mm. This dimension allows for an optimal visual experience for users. Does the product Philips B Line 222B1TFL have DDC/CI? Oui. This specification allows communication between the screen and the computer, thus facilitating the adjustment of display settings. Does the product Philips B Line 222B1TFL have SRGB? Oui. This specification ensures accurate color reproduction on the screen. The number of colors displayed for the product Philips B Line 222B1TFL is 16,7 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The panel type of the product Philips B Line 222B1TFL is IPS. This type of panel offers excellent display quality and vibrant colors. The pixel density of the product Philips B Line 222B1TFL is 102 pixels par pouce. This feature ensures optimal display quality for an enriching visual experience. The marketing name of the dynamic contrast ratio of the product Philips B Line 222B1TFL is SmartContrast. This ratio allows for images with deep blacks and bright whites, thus providing an immersive visual experience. The screen shape of the product Philips B Line 222B1TFL is Plat. This feature ensures an optimal visual experience for all your multimedia needs. The hardness of the surface of the product Philips B Line 222B1TFL is 7H. This feature ensures increased resistance to scratches and wear, thus providing optimal protection for your screen. Does the product Philips B Line 222B1TFL have a touchscreen? Oui. The screen size of the product Philips B Line 222B1TFL is 21.5 ". This dimension allows for an optimal visual experience for all your content. The brightness of the Philips B Line 222B1TFL screen is 400 cd/m². This feature ensures optimal visibility even in varying lighting conditions. The image format of the product Philips B Line 222B1TFL is 16:9. This format is ideal for an immersive visual experience. The touchscreen technology of the product Philips B Line 222B1TFL has Technologie capacitive projetée. This technology allows for smooth and intuitive interaction with the screen, providing an enhanced user experience. The touch technology of the product Philips B Line 222B1TFL contains Plusieurs pressions. This technology allows for smooth and precise interaction with the screen, providing an enhanced user experience. The display technology of the product Philips B Line 222B1TFL is LED. This technology ensures optimal image quality for an immersive visual experience. The HD Type of the product Philips B Line 222B1TFL is Full HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The diffusion rate of the product Philips B Line 222B1TFL is 5 %. This rate indicates the screen's ability to diffuse light, thereby influencing visual quality and user experience.
Ergonomics
Does the product Philips B Line 222B1TFL have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings. The number of OSD languages of the product Philips B Line 222B1TFL is 21. This feature allows for easy use in multiple languages, making the product accessible to a wide audience. The product Philips B Line 222B1TFL has the VESA Standard 100 x 100 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. Does the product Philips B Line 222B1TFL have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The multilingual display on the Philips B Line 222B1TFL screen contains CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR. This system allows users to easily navigate in multiple languages, making the experience more accessible and user-friendly. Does the product Philips B Line 222B1TFL have a cable lock port? No. This product does not have this security feature. Does the product Philips B Line 222B1TFL have indicators? Operation, Stand-by. These indicators allow you to visualize the operating status of the device. Does the product Philips B Line 222B1TFL have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The type of cable lock location for the product Philips B Line 222B1TFL is Kensington. This type of lock provides optimal security to protect your device against theft. The product Philips B Line 222B1TFL has a palm rejection area of 30 x 30 mm. This feature enhances user comfort by reducing pressure on the hand. Does the product Philips B Line 222B1TFL have Wall Mounting? Oui. This feature allows the product to be mounted on the wall, thus providing space-saving and improved aesthetics.
Representation / realization
Does the product Philips B Line 222B1TFL have Flicker-Free Technology? Oui. This technology helps eliminate flicker effects, providing a more enjoyable and comfortable visual experience. Does the product Philips B Line 222B1TFL support the Windows operating system? Windows 10, Windows 7, Windows 8, Windows 8.1. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. The video synchronization component of the Philips B Line 222B1TFL product contains Separate sync, Sync-on-green (SOG). This component ensures precise synchronization for optimal image quality. Does the product Philips B Line 222B1TFL have Low-Blue-Light Technology? Oui. This technology helps reduce eye strain by filtering harmful blue light, thus providing optimal visual comfort. Does the product Philips B Line 222B1TFL have NVIDIA G-SYNC? No. This technology helps eliminate screen tearing and improve gaming smoothness. Does the product Philips B Line 222B1TFL have AMD FreeSync? No. This technology helps eliminate screen tearing and ensures a smooth gaming experience.
Multimedia
Does the Philips B Line 222B1TFL have a built-in camera? Non. This camera allows you to capture precious moments with ease.
Sustainability
The product Philips B Line 222B1TFL has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect. The product Philips B Line 222B1TFL does not contain PVC/BFR, Mercury (element). This ensures safe use for your health.
Weight and dimensions
The unsupported depth of the product Philips B Line 222B1TFL is 49 mm. This dimension is essential to ensure optimal integration into your space. The width of the product Philips B Line 222B1TFL is 522 mm. This dimension allows for optimal integration into various spaces. The height of the product Philips B Line 222B1TFL is 315 mm. This dimension is essential to ensure the product fits your space. The weight of the product Philips B Line 222B1TFL is 4910 g. This weight is essential for assessing the maneuverability and transport of the product.
