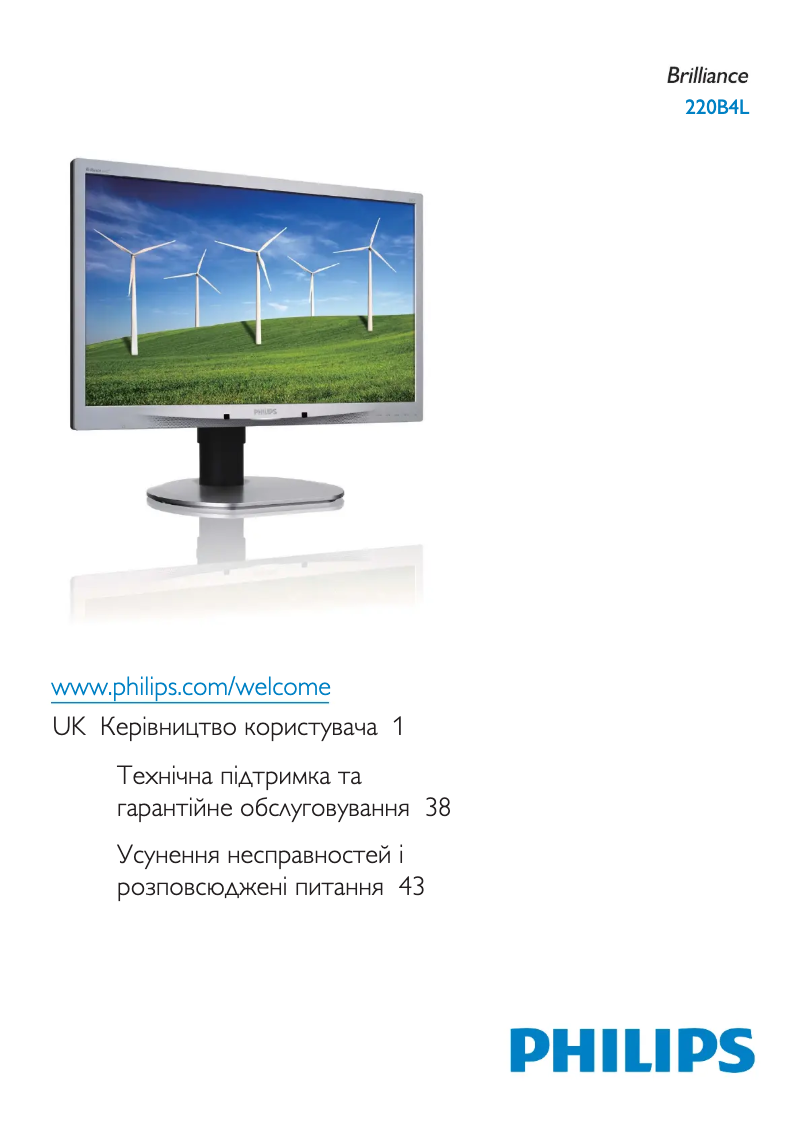

Manuals of product Brilliance 220B4LPYCB
Technical Specifications Brilliance 220B4LPYCB
General Information
-
ModelBRILLIANCE 220B4LPYCB
-
Brand
-
Category
-
Type
-
SKU161758
-
MPN161758
Screen
-
Type HD-
-
No pixel0.282 x 0.282 mm
-
Screen brightness (typical)250 cd/m²
-
Response time5 ms
-
Image format16:10
-
Screen size22 "
-
Screen resolution1680 x 1050 pixels
-
Contrast ratio1000:1
-
Dynamic contrast report20000000:1
-
Horizontal viewing angle170 °
-
Vertical viewing angle160 °
-
Number of colors displayed16.78 million colors
-
Horizontal scanning domain30 - 83 kHz
-
Vertical scanning frequency56 - 75 Hz
-
Horizontal viewable size473.76 mm
-
Vertical viewable size296.1 mm
-
Synchronization on green (SOG)Yes
-
Synchronization on green (SOG)Yes
-
Touch screenNo
-
Supported graphic resolutions1680 x 1050 (WSXGA+)
-
Type of feedbackW-LED
-
Image format16:10
-
Touch screenNo
Other features
-
Package dimensions (LxWxH)565 x 391 x 186 mm
-
Visible region screen HxV473.76 x 296.1 mm
-
Dimensions (W x D x H) with the foot504 x 509 x 227 mm
-
Mean time between failures30000 h
-
ScreenLCD
-
Integrated TV tunerNo
-
CertificationTCO, RoHS
Connectivity
-
PC audio inputYes
-
Headset output1
-
Headset output1
-
Quantity of HDMI ports0
-
Quantity of HDMI ports0
-
Number of downstream USB Type A ports2
-
Headset output1
-
Headset output1
-
PC audio inputYes
-
USB hub version2.0
Multimedia
-
Built-in speakersYes
-
Number of speakers2
-
Rated power of RMS1.5 W
-
Built-in cameraNo
Ergonomics
-
Cable anti-theft lockYes
-
Number of OSD languages8
-
Multilingual display on screenCHI (SIMPL), DEU, ENG, ESP, FRE, ITA, POR, RUS
-
Cable anti-theft lockYes
-
VESA standard100 x 100 mm
-
Cable anti-theft lockYes
-
Oscillation angle range-65 - 65 °
-
Cable anti-theft lockYes
-
Inclination angle-5 - 20 °
-
Cable anti-theft lockYes
-
Height adjustment110 mm
-
Rotation angle0 - 90 °
-
Cable anti-theft lockYes
-
Cable anti-theft lockYes
-
IndicatorsEnergy
-
Cable lock location typeKensington
Thin client
-
Thin client installedNo
Network
-
WifiNo
-
WifiNo
Power
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption16.8 W
-
Typical electricity consumption16.8 W
-
Energy consumption (standby mode)0.1 W
-
Typical electricity consumption16.8 W
-
Electricity consumption (stop)0 W
-
Energy consumption (eco mode)12.6 W
Weight and dimensions
-
Device width (support included)504 mm
-
Depth (without support)59 mm
-
Height (without support)349 mm
-
Weight (without support)3380 g
-
Device width (support included)504 mm
-
Depth (support included)227 mm
-
Height (support included)509 mm
-
Weight (with support)5200 g
Design
-
Market position-
-
Product colorBlack
Representation / realization
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 60 °C
-
Operating relative humidity (H-H)20 - 80 %
-
Operating altitude0 - 3658 m
-
Non-operating altitude3658 - 12192 m
Packaging information
-
Package width565 mm
-
Package depth186 mm
-
Package height391 mm
-
Package weight7050 g
Sustainability
-
Sustainability certificatesEPEAT Gold
-
ENERGY STAR
Similar products
More product categories from brand Philips
Audio Philips
Home appliances Philips
Personal care Philips
Household appliances Philips
Interior Philips
Phones Philips
Other Philips
Garden and outdoor Philips
Software Philips
More product types from brand Philips
Presentation of product Brilliance 220B4LPYCB specifications from brand Philips
Generalities
The brand of the product Philips Brilliance 220B4LPYCB is Philips. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Philips Brilliance 220B4LPYCB is 8712581641610, 8712581641627, 8712581641634, 8712581641641. This code allows for the unique identification of the product in the distribution system. The product model Philips Brilliance 220B4LPYCB is Brilliance 220B4LPYCB | 220B4LPYCB/69. This model ensures optimal performance and an enhanced user experience.
Other features
The dimensions of the Philips Brilliance 220B4LPYCB package are 565 x 391 x 186 mm. These dimensions ensure suitable and secure packaging for transport. The product Philips Brilliance 220B4LPYCB has dimensions (L x D x H) with a foot of 504 x 509 x 227 mm. These dimensions ensure optimal integration into your space. The visible HxV screen area of the Philips Brilliance 220B4LPYCB product contains 473.76 x 296.1 mm. This feature enhances the visual experience by providing a generous display surface. The average time between failures of the product Philips Brilliance 220B4LPYCB is 30000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The Philips Brilliance 220B4LPYCB screen contains LCD. This screen offers exceptional image quality for an immersive visual experience. Does the product Philips Brilliance 220B4LPYCB have a built-in TV tuner? No. This product does not allow you to receive television channels directly. The certification of the product Philips Brilliance 220B4LPYCB contains TCO, RoHS. This certification guarantees compliance with the required safety and performance standards.
Connectivity
Does the product Philips Brilliance 220B4LPYCB have HDCP? Oui. This specification ensures the protection of digital content against unauthorized copying. The number of DVI-D/DVI-I ports of the product Philips Brilliance 220B4LPYCB is 0. This feature determines compatibility with various screens and video equipment. The product Philips Brilliance 220B4LPYCB does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of VGA (D-Sub) ports on the Philips Brilliance 220B4LPYCB is 1. This port allows for easy connection with various devices and monitors. The number of HDMI ports on the Philips Brilliance 220B4LPYCB is 0. This detail is essential for determining compatibility with your multimedia devices. The number of downstream USB Type A ports of the product Philips Brilliance 220B4LPYCB is 2. These ports allow for easy and fast connection to various devices. Does the product Philips Brilliance 220B4LPYCB have a PC audio input? Oui. This feature allows for easy connection of audio devices for an optimal sound experience. The version of the USB hub of the product Philips Brilliance 220B4LPYCB is 2.0. This version ensures fast and efficient connectivity for all your devices. The number of DisplayPort interfaces of the product Philips Brilliance 220B4LPYCB is 1. This specification allows for optimal connectivity with various devices. The headphone output of the Philips Brilliance 220B4LPYCB is %. This output allows for easy connection of headphones or a headset for an optimal audio experience.
Multimedia
Does the Philips Brilliance 220B4LPYCB have a built-in camera? Non. This camera allows you to capture precious moments with ease. Does the product Philips Brilliance 220B4LPYCB have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The RMS rated power of the product Philips Brilliance 220B4LPYCB is 1.5 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of speakers of the product Philips Brilliance 220B4LPYCB is 2. This number ensures optimal sound quality for an enriching multimedia experience.
Screen
The typical screen brightness of the product Philips Brilliance 220B4LPYCB is 250 cd/m². This feature ensures optimal visibility in various lighting conditions. The pixel pitch of the product Philips Brilliance 220B4LPYCB is 0.282 x 0.282 mm. This pixel pitch ensures optimal display quality without distortion. The image format of the product Philips Brilliance 220B4LPYCB is 16:10. This format is ideal for an immersive visual experience. The response time of the product Philips Brilliance 220B4LPYCB is 5 ms. This fast response time ensures a smooth and responsive visual experience. The screen size of the product Philips Brilliance 220B4LPYCB is 22 ". This dimension allows for an optimal visual experience for all your content. The screen resolution of the product Philips Brilliance 220B4LPYCB is 1680 x 1050 pixels. This feature ensures optimal display quality for a pleasant visual experience. The contrast ratio of the product Philips Brilliance 220B4LPYCB is 1000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The dynamic contrast ratio of the product Philips Brilliance 220B4LPYCB is 20000000:1. This ratio helps enhance image quality by providing deeper blacks and brighter whites. The horizontal viewing angle of the product Philips Brilliance 220B4LPYCB is 170 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Philips Brilliance 220B4LPYCB is 160 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The number of colors displayed for the product Philips Brilliance 220B4LPYCB is 16,78 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The horizontal scanning range of the product Philips Brilliance 220B4LPYCB is 30 - 83 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Philips Brilliance 220B4LPYCB is 56 - 75 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal viewable size of the product Philips Brilliance 220B4LPYCB is 473.76 mm. This specification ensures an optimal visual experience for all your content. The vertical viewable size of the product Philips Brilliance 220B4LPYCB is 296.1 mm. This dimension allows for an optimal visual experience for users. Does the product Philips Brilliance 220B4LPYCB have separate H/V Sync? Oui. This feature allows for adjusting the synchronization of horizontal and vertical display for an optimal viewing experience. Does the product Philips Brilliance 220B4LPYCB have Sync on Green (SOG)? Oui. This feature helps improve the smoothness of the displayed images. Does the product Philips Brilliance 220B4LPYCB have 3D Compatibility? No. This product does not support 3D technology. The image format of the product Philips Brilliance 220B4LPYCB is 16:10. This format is ideal for an immersive visual experience. The HD Type of the product Philips Brilliance 220B4LPYCB is -. This HD Type ensures exceptional image quality for an immersive viewing experience. The supported graphic resolutions of the product Philips Brilliance 220B4LPYCB are 1680 x 1050 (WSXGA+). These resolutions provide optimal display quality for your content. The type of feedback for the product Philips Brilliance 220B4LPYCB is W-LED. This type of feedback offers optimal display quality and vibrant colors. Does the product Philips Brilliance 220B4LPYCB have a touchscreen? Non.
Thin client
Does the product Philips Brilliance 220B4LPYCB have Thin client installed? No. This product does not have this feature.
Network
Does the Philips Brilliance 220B4LPYCB have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Philips Brilliance 220B4LPYCB contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Ergonomics
Does the product Philips Brilliance 220B4LPYCB have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. Does the product Philips Brilliance 220B4LPYCB have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings. The multilingual display on the Philips Brilliance 220B4LPYCB screen contains CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, POR, RUS. This system allows users to easily navigate in multiple languages, making the experience more accessible and user-friendly. The number of OSD languages of the product Philips Brilliance 220B4LPYCB is 8. This feature allows for easy use in multiple languages, making the product accessible to a wide audience. The product Philips Brilliance 220B4LPYCB has the VESA Standard 100 x 100 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. Is the Philips Brilliance 220B4LPYCB product Rotating? Oui. This feature allows for optimal usage flexibility. The oscillation angle range of the product Philips Brilliance 220B4LPYCB is -65 - 65 °. This feature allows for optimal flexibility during its use. The tilt angle of the product Philips Brilliance 220B4LPYCB is -5 - 20 °. This angle allows for adjusting the position for optimal comfort. Does the product Philips Brilliance 220B4LPYCB have a height adjustment? No. This product does not allow for height adjustment. Does the product Philips Brilliance 220B4LPYCB have a height adjustment? No. This product does not allow for height adjustment. Does the product Philips Brilliance 220B4LPYCB have an Incline Adjustment? Oui. This feature allows you to adjust the angle according to your needs for optimal comfort. The rotation angle of the product Philips Brilliance 220B4LPYCB is 0 - 90 °. This angle allows for optimal usage flexibility. Does the product Philips Brilliance 220B4LPYCB have Pivot? Oui. This feature allows for optimal flexibility to adapt to your needs. Does the product Philips Brilliance 220B4LPYCB have a cable lock port? No. This product does not have this security feature. Does the product Philips Brilliance 220B4LPYCB have indicators? Énergie. These indicators allow you to visualize the operating status of the device. The type of cable lock location for the product Philips Brilliance 220B4LPYCB is Kensington. This type of lock provides optimal security to protect your device against theft.
Power
The AC input voltage of the Philips Brilliance 220B4LPYCB is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Philips Brilliance 220B4LPYCB is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The average energy consumption of the product Philips Brilliance 220B4LPYCB is 16.8 W. This feature allows for the assessment of the device's energy efficiency. The maximum consumption of the product Philips Brilliance 220B4LPYCB is 16.8 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product Philips Brilliance 220B4LPYCB is 0.1 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The typical power consumption of the product Philips Brilliance 220B4LPYCB is 16.8 W. This feature allows for the assessment of the energy efficiency of the device. The power consumption (standby) of the product Philips Brilliance 220B4LPYCB is 0 W. This feature helps to minimize energy consumption when the device is in standby mode. The energy consumption in economy mode of the product Philips Brilliance 220B4LPYCB is 12.6 W. This feature significantly reduces electrical consumption while maintaining optimal performance.
Design
The market position of the product Philips Brilliance 220B4LPYCB is -. This product is primarily aimed at professionals, offering features tailored to their specific needs. The color of the product Philips Brilliance 220B4LPYCB is Noir. This shade gives it a modern and elegant look.
Representation / realization
Does the product Philips Brilliance 220B4LPYCB support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. Does the product Philips Brilliance 220B4LPYCB support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users.
Weight and dimensions
The unsupported depth of the product Philips Brilliance 220B4LPYCB is 59 mm. This dimension is essential to ensure optimal integration into your space. The width of the product Philips Brilliance 220B4LPYCB is 504 mm. This dimension allows for optimal integration into various spaces. The height of the product Philips Brilliance 220B4LPYCB is 349 mm. This dimension is essential to ensure the product fits your space. The weight of the product Philips Brilliance 220B4LPYCB is 3380 g. This weight is essential for assessing the maneuverability and transport of the product. The width of the device Philips Brilliance 220B4LPYCB is 504 mm. This dimension includes the stand, ensuring a seamless integration into your space. The depth of the product Philips Brilliance 220B4LPYCB is 227 mm. This dimension is essential to ensure optimal integration into your space. The height (including support) of the product Philips Brilliance 220B4LPYCB is 509 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight (with support) of the product Philips Brilliance 220B4LPYCB is 5200 g. This weight includes all the necessary accessories for its use.
Environmental conditions
The operating altitude of the product Philips Brilliance 220B4LPYCB is 0 - 3658 m. This specification ensures optimal performance across a wide range of altitudes. The product Philips Brilliance 220B4LPYCB has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Philips Brilliance 220B4LPYCB is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Philips Brilliance 220B4LPYCB is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The altitude of non-operation for the product Philips Brilliance 220B4LPYCB is 3658 - 12192 m. This specification ensures that the product can operate efficiently across a wide range of altitudes.
Packaging information
The width of the package of the product Philips Brilliance 220B4LPYCB is 565 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Philips Brilliance 220B4LPYCB is 186 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Philips Brilliance 220B4LPYCB is 391 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Philips Brilliance 220B4LPYCB package is 7050 g. This weight ensures optimal protection during transport and delivery.
Sustainability
The product Philips Brilliance 220B4LPYCB has Sustainability Certificates: EPEAT Gold, ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
