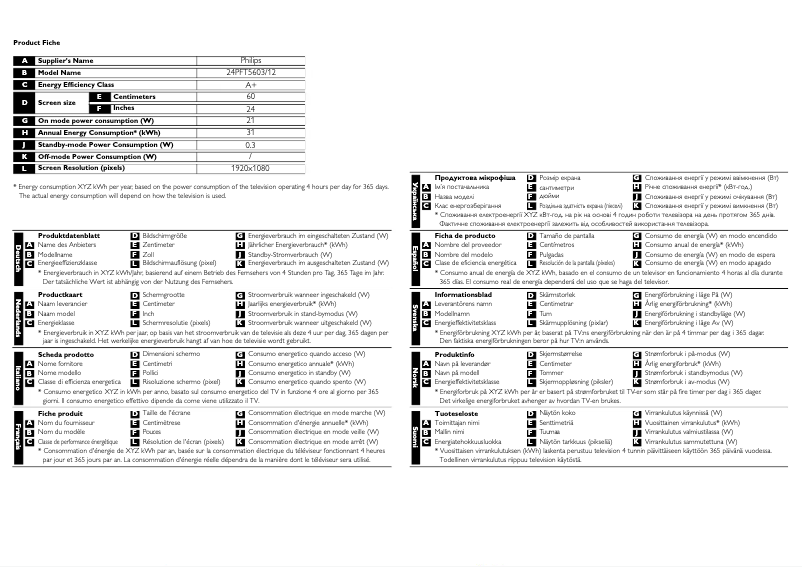

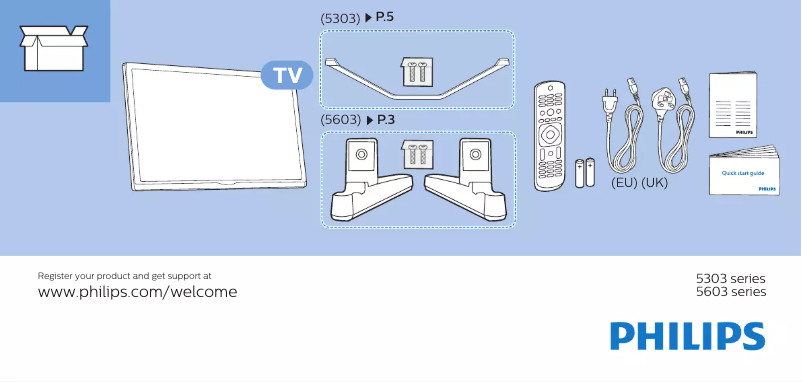

Manuals of product 24PFS5603
Editorial note
The Philips 24PFS5603 is a compact 24-inch television that stands out with its Full HD screen offering a resolution of 1920 x 1080 pixels. This display quality allows for an immersive visual experience with sharp and detailed images, ideal for small spaces. Its modern design, with VESA compatibility for wall mounting, adds an aesthetic touch to any interior. In terms of energy efficiency, this model performs well thanks to its Energy Saving mode and low standby consumption, which helps reduce electricity bills. Connectivity is also satisfactory with two HDMI ports and one USB 2.0 port, allowing for the connection of various multimedia devices. However, the Philips 24PFS5603 has some limitations. The lack of Smart TV features restricts access to streaming applications, which can be a drawback for users seeking internet access. Additionally, the audio power of 6 W may prove insufficient for an immersive sound experience, especially in larger rooms. The screen size may not suit everyone, particularly for those who prefer a wider viewing experience. Finally, the maximum brightness ratio of 65% may pose visibility issues in very bright environments. In summary, the Philips 24PFS5603 is an interesting option for those looking for a small television with good image quality and reduced energy consumption, but it may not meet the expectations of users in search of advanced features and a richer audio experience.Score details
User experience
The user experience is generally positive thanks to the 24-inch Full HD screen offering a resolution of 1920 x 1080 pixels for high-quality images, but the lack of Smart TV features limits access to streaming applications.
Performance
The performance is adequate for everyday use, but the audio power of 6 W may be insufficient for an immersive sound experience, especially in larger rooms.
Battery life
Energy consumption is reduced thanks to the Energy Saving mode and low standby consumption, thus contributing to savings on electricity bills.
Design
The design is compact and modern, ideal for small spaces, with VESA compatibility for easy wall mounting.
connectivity
Connectivity is versatile with 2 HDMI ports and 1 USB 2.0 port, but the lack of Ethernet ports and Wi-Fi connectivity limits network connection options.
Usability
The 24-inch screen size may not be suitable for all users, particularly for those seeking a more immersive viewing experience.
brightness
The maximum brightness ratio of 65% may lead to visibility difficulties in very bright environments.
Advantages
Full HD 24-inch screen, sharp images
Energy-saving, low standby consumption
Connectivity: 2 HDMI, 1 USB 2.0
Compact design, ideal for small spaces
Built-in speakers, pleasant sound
Disadvantages
No Smart TV features
Insufficient audio power of 6 W
No Ethernet ports or Wi-Fi
24-inch screen too small
Maximum brightness limited to 65%
Technical Specifications 24PFS5603
General Information
-
Model24PFS5603
-
Brand
-
Category
-
Type
-
SKU1021254
-
MPN1021254
Screen
-
Interpolation movement technology-
-
Screen size24 "
-
Screen resolution
-
Screen diagonal (cm)1920 x 1080 pixels
-
Maximum brightness report
-
Type HD60 cm
-
Supported graphic resolutions
-
Screen format settings65 %
-
Screen brightness
-
Response timeFull HD
-
Display technology
-
Screen shape1920 x 1080 (HD 1080)
-
Image format
-
4:3, 16:9
-
-
- cd/m²
-
-
- ms
-
-
LED
-
-
Flat
-
-
16:9
Audio
-
Number of speakers-
-
Rated power of RMS6 W
-
Automatic volume levelerYes
Power
-
Electricity consumption (stop)0.3 W
-
Electricity consumption (stop)0.3 W
-
AC input voltage220 - 240 V
-
AC input frequency50 - 60 Hz
-
Energy Saving ModeYes
-
Typical electricity consumption21 W
Weight and dimensions
-
Device width (support included)562.3 mm
-
Depth (without support)55.74 mm
-
Height (without support)336.63 mm
-
Device width (support included)562.3 mm
-
Depth (support included)112.02 mm
-
Height (support included)352.84 mm
-
Weight (without support)3230 g
-
Weight (with support)3260 g
Packaging information
-
Package weight3300 g
-
Package depth112 mm
-
Package height425 mm
-
Package width630 mm
-
Type of packagingBox
-
User manualYes
-
User manualYes
Connectivity
-
Headset output1
-
Quantity of HDMI ports2
-
Headset output1
-
Composite video input0
-
Composite video input0
-
DVI PortNo
-
Composite video input0
-
Common Interface Plus (Cl+)Yes
-
RF connector typeIEC
-
Headset output1
-
Common Interface Plus (Cl+)Yes
-
Common Interface Plus (Cl+)Yes
-
Headset output1
-
Headset output1
-
Headset output1
-
Composite video input0
-
Consumer Electronics Control (CEC)EasyLink
-
Composite video input0
-
Composite video input0
Other features
-
3D Compatibility-
-
Energy efficiency class (old)A+
-
Annual energy consumption31 kWh
-
Batteries includedYes
-
Batteries includedYes
-
Battery typeAAA
-
Number of supported batteries2
Environmental conditions
-
Operating temperature5 - 35 °C
Design
-
Built-in power buttonYes
-
VESA standard75 x 75 mm
-
Product colorWhite
-
Built-in power buttonYes
-
Built-in power buttonYes
-
Without heavy metalsHg (mercury)
Representation / realization
-
Image processing technologyPhilips Pixel Plus HD
-
Subtitle functionYes
-
Subtitle functionYes
-
Teletext1000 pages
-
Standard teletextHyper-text
-
Subtitle functionYes
-
Supported video formatAVC, AVI, H.264, H.265, HEVC, MKV, MPEG1, MPEG2, MPEG4, VC-1, WMV9
-
Supported audio formatsAAC, MP3, WAV, WMA
-
Supported image formatsBMP, GIF, JPEG, PNG
-
Supported subtitle formatASS, SMI, SRT, SSA, SUB, TXT
Management features
-
The ECO modeYes
-
Firmware upgrade viaAuto upgrade wizard, USB
-
The ECO modeYes
-
Programming period8 day(s)
-
The ECO modeYes
-
The ECO modeYes
-
The ECO modeYes
TV Tuner
-
Analog signal format systemNTSC
-
Digital signal system formatPAL
-
Tuner typeSECAM
-
DVB-C
-
DVB-S
-
DVB-S2
-
DVB-T
-
DVB-T2
-
DVB-T2 HD
-
Analog and digital
Smart TV / smart TV
-
Smart TV-
-
Internet TV-
Network
-
Wifi-
-
Ethernet/LANNo
Packaging contents
-
Desktop supportYes
-
Desktop supportYes
-
Cables includedSector
Frequently Asked Questions
What is the recommended viewing distance for my Philips TV?
What should I do if my television is no longer receiving a signal?
What are the dimensions of the screen on my television?
What does the acronym HDMI stand for?
Can devices from different brands be connected via Bluetooth?
What is the screen size of the Philips 24PFS5603?
What is the resolution of the screen on the Philips 24PFS5603?
Is the user manual for the Philips 24PFS5603 available in French?
Similar products
More product categories from brand Philips
Audio Philips
Home appliances Philips
Personal care Philips
Household appliances Philips
Interior Philips
Phones Philips
Other Philips
Garden and outdoor Philips
Software Philips
More product types from brand Philips
Presentation of product 24PFS5603 specifications from brand Philips
General Information
The Philips 24PFS5603 television is a product of the Philips brand, known for its innovation and quality in the electronics sector. This model, identified by the code 24PFS5603 | 24PFS5603/12, offers optimal performance and an enhanced user experience. The EAN code, 8718863014752, ensures its unique identification in the distribution system.
Screen
This television features a 24-inch (60 cm) screen, offering a Full HD resolution of 1920 x 1080 pixels. This combination guarantees superior display quality to fully enjoy all your multimedia content. With a maximum brightness ratio of 65 %, it ensures adequate visibility even in well-lit environments. The screen format adjustment supports 4:3 and 16:9 ratios, allowing for adjustment according to your visual preferences. The LED display technology ensures vibrant colors and sharp images.
Audio
The Philips 24PFS5603 has an audio power of 6 W, sufficient for use in small spaces. It is equipped with an automatic volume leveler, ensuring a pleasant listening experience without sudden sound variations.
Power
This television consumes 0.3 W in standby mode, which helps reduce energy consumption when the device is not in use. Its typical power consumption is 21 W, and it operates on an input voltage of 220 - 240 V with a frequency of 50 - 60 Hz. The Energy Saving mode allows for savings on your electricity bills while being environmentally friendly.
Weight and Dimensions
The dimensions of the Philips 24PFS5603 are suitable for easy integration into various spaces: 562.3 mm in width, 55.74 mm in depth without the stand, and 336.63 mm in height. With a weight of 3260 g (including the stand), this model is lightweight and easy to move.
Packaging Information
The total weight of the packaging is 3300 g, ensuring optimal protection during transport. The package dimensions are 630 mm in width, 425 mm in height, and 112 mm in depth, facilitating efficient storage and transport. A quick start guide and a user manual are included for easy handling.
Connectivity
The Philips 24PFS5603 offers versatile connectivity with 2 HDMI ports and 1 USB 2.0 port, allowing for easy connection of various multimedia devices. It is also equipped with an RF connector for optimal connection to antennas.
Other Features
Rated A+ for energy efficiency, this model consumes approximately 31 kWh annually. Although it does not support 3D technology, it is equipped with built-in speakers for a convenient audio experience. Additionally, it includes AAA batteries for the remote control, allowing for immediate use.
Environmental Conditions
The television operates efficiently in temperatures ranging from 5 to 35 °C, ensuring optimal use in various environments.
Design
With a modern white color and compatible VESA mounting (75 x 75 mm), the Philips 24PFS5603 easily fits into any decor. It features a built-in power button for optimal control.
TV Tuner
The analog signal system supports NTSC, PAL, and SECAM formats, while the digital system is compatible with DVB-C, DVB-S2, DVB-T, and DVB-T2 HD, ensuring quality reception.
Network
This model does not have Wi-Fi connectivity or Ethernet ports, limiting network connection options.
Contents of the Package
The Philips 24PFS5603 comes with a remote control, a desktop stand, and a power cable, ensuring easy setup right out of the box.
